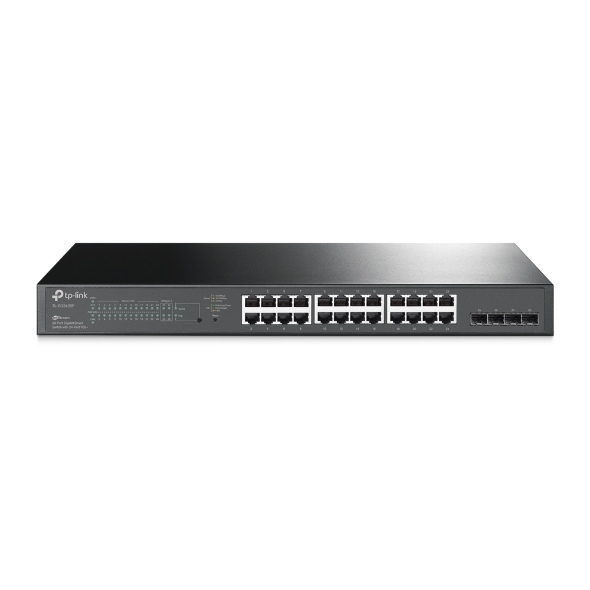

SG2428P | TP-Link Omada Access 28-Port Gigabit Smart Switch with 24-Port PoE+

• 24× 10/100/1000 Mbps PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)

• 4× Gigabit SFP Slots

• Standard: 802.3at/af compliant

• PoE+ Ports: 24 Ports (up to 30 W PoE Output per Port)

• PoE Power Budget: 250 W*

• 802.1p CoS/DSCP priority

• 8 priority queues

• Priority Schedule Mode: SP (Strict Priority), WRR (Weighted Round Robin)

• Queue Weight Config

• Bandwidth Control: Port/Flow-based Rating Limit

• Smoother Performance

• Storm Control: Multiple Control Modes(kbps/ratio), Broadcast/Multicast/Unknown-Unicast Control

• 32 IP Interfaces: Support IPv4/IPv6 Interface

• Static Routing: 32 IPv4/IPv6 Static Routes

• DHCP Server

• DHCP Relay

- DHCP Interface Relay

- DHCP VLAN Relay

• DHCP L2 Relay

• Static ARP

• Proxy ARP

• Gratuitous ARP

• Link Aggregation

• Spanning Tree Protocol

• Loopback Detection

• 802.3x Flow Control

• Mirroring

• Device Link Detect Protocol (DLDP)

• 802.1ab LLDP/ LLDP-MED

• 511 IPv4, IPv6 shared multicast groups

• IGMP Snooping

• Multicast VLAN Registration (MVR)

• Multicast Filtering

• Limited IP Multicast (256 profiles and 16 entries per profile)

• Automatic Device Discovery^†

• Batch Configuration^†

• Batch Firmware Upgrading^†

• Intelligent Network Monitoring^†

• Abnormal Event Warnings^†

• Unified Configuration^†

• Reboot Schedule^†

• VLAN Group: Max. 4K VLAN Groups

• 802.1Q tag VLAN

• MAC VLAN: 12 Entries

• Protocol VLAN

• GVRP

• Voice VLAN

• Support up to 230 entries

• Time-based ACL

• MAC ACL

• IP ACL

• IPv6 ACL

• Combined ACL

• Rule Operation: Permit/Deny

• Policy Action

- Mirroring

- Redirect

- Rate Limit

- QoS Remark

• ACL Rules Binding

- Port Binding

- VLAN Binding

• IP-MAC-Port Binding

• AAA

• 802.1X

- Port based authentication

- MAC (Host) based authentication

- Authentication Method includes PAP/EAP-MD5

- MAB

- Guest VLAN

- Radius authentication and accountability support

• IP/IPv6-MAC Binding

- 512 Binding Entries

- DHCP Snooping

- DHCPv6 Snooping

- ARP Inspection

- ND Detection

• IP Source Guard

- 253 Entries

- Source IP+Source MAC

• IPv6 Source Guard

- 183 Entries

- Source IPv6 Address+Source MAC

• DoS Defend

• Static/Dynamic/Permanent Port Security: Up to 64 MAC addresses per port

• Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode

• Port Isolation

• Secure web management through HTTPS with SSLv3/TLS 1.2

• Secure Command Line Interface (CLI) management with SSHv1/SSHv2

• IP/Port/MAC-based access control

• IPv6 Static Routing and ACL

• IPv6 Dual IPv4/IPv6

• IPv6 Interface

• Multicast Listener Discovery (MLD) Snooping

• IPv6 neighbor discovery (ND)

• Path maximum transmission unit (MTU) discovery

• Internet Control Message Protocol (ICMP) version 6

• TCPv6/UDPv6

• IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet(v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP

• MIB II (RFC1213)

• Bridge MIB (RFC1493)

• P/Q-Bridge MIB (RFC2674)

• Radius Accounting Client MIB (RFC2620)

• Radius Authentication Client MIB (RFC2618)

• Remote Ping, Traceroute MIB (RFC2925)

• Support TP-Link private MIBs

• RMON MIB(RFC1757, rmon 1,2,3,9)

• Omada Cloud-Based Controller

• Omada Hardware Controller

• Omada Software Controller

• Web-based GUI

• Command Line Interface (CLI) through telnet

• SNMPv1/v2c/v3

• SNMP Trap/Inform

• RMON (1,2,3,9 groups)

• SDM Template

• DHCP/BOOTP Client

• Dual Image, Dual Configuration

• CPU Monitoring

• Cable Diagnostics

• EEE

• SNTP

• System Log

• SG2428P

• Power Cord

• Installation Guide

• Rackmount Kit

• Rubber Feet

• Operating Temperature: 0–50 ℃ (32–122 ℉);

• Storage Temperature: -40–70 ℃ (-40–158 ℉)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing
