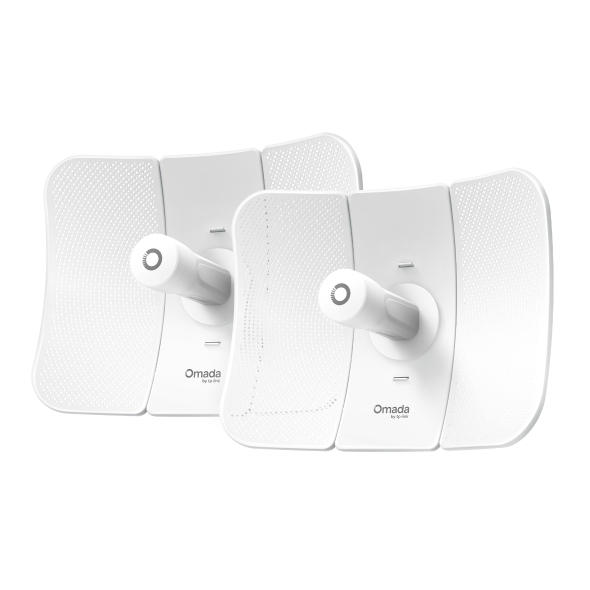

Beam Bridge 5 UR KIT | TP-Link Omada Beam Bridge Kit 5GHz Ultra-Range Wireless Bridge

Business-Grade up to 9.3 mi (15 km) Ultra-Range Wireless Transmission: With 23dBi high-gain directional antennas.*
Plug-and-Play with Preconfigured Kit: Preconfigured for instant PtP auto-pairing, the bridges deliver instant connectivity right out of the box.
App-Guided Alignment: Visualized app-guided alignment for long-distance setups and instant speed testing for installation verification.
Simple PoE Deployment and Power Supply: 1× Gigabit PoE port supports both 802.3af PoE and Passive PoE for simplified wiring and lower deployment costs.
Designed for Outdoor Durability & Reliability: IP65 weatherproof enclosure, 6 kV lightning protection and operating range of -40 °C to +70 °C.**
Remote Monitoring & Management: Standalone mode or Omada SDN mode for remote centralized management via Web UI or App^†

$299.99

Product Details

HARDWARE FEATURES
Interface	1 x 10M/100M/1000Mbps Gigabit Ethernet Port (RJ45); PoE In
Button	1 × Reset Button 1 × System Mode Selection Button
DIP Switch	Role Switch
Power Supply	802.3af PoE (1,2pins; 3,6pins) 24V or 48V Passive PoE (+4,5pins; -7,8pins) (Passive PoE Adapter Included)
Max. Power Consumption	15.8W
Dimensions ( W x D x H )	14.4 × 11.0 × 8.1 in (366 × 280 × 207 mm)
Antenna	External 2×2 Dual-Polarized Directional MIMO Antennas 5 GHz: 23 dBi
Antenna Beamwidth	Horizontal: 9°, Vertical: 7°
Weatherproof Enclosure	IP65
Bandwidth	5 GHz: 20 MHz/40 MHz/80 MHz
Mounting	Pole Mounting (Kits Included)

Management Features
Omada App	Yes
Restore & Backup	Yes
Firmware update via Web	Yes
NTP	Yes
Centralized Management	• Omada Central (Cloud-Based) • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Require the use of an Omada Controller.
Email Alerts	Yes
LED ON/OFF Control	Yes
SNMP	Yes
SSH	Yes
Web-based Management	Yes
Zero-Touch Provisioning	Yes

WIRELESS FEATURES
PtP	Yes
Transmission Distance	15 km (9.3 mi)
Wireless Standards	IEEE 802.11 a/n/ac
Frequency	5 GHz
Signal Rate	5 GHz: Up to 867 Mbps
Wireless Functions	• MU-MIMO: 5G 2x2 MU-MIMO DL • Maximum number of associated STAs: 8 • Speed Test • Channel Optimization • Antenna Alignment • ACS (Automatic Channel Selection) • Rate Limit • Guest Network
Wireless Security	• VLAN • Rogue AP Detection • Maximum number of MAC Filter: 4,000 • Wireless Encryption
Transmission Power	• CE: <23 dBm (5 GHz, U-NII-1/2A, ERIP) <30 dBm (5 GHz, U-NII-1/2C, ERIP) • FCC: <27 dBm (5 GHz, U-NII-1) <27 dBm (5 GHz, U-NII-3)

OTHERS
Certification	CE, FCC
Package Content	• Beam Bridge 5 UR KIT • Installation Guide • Mounting Kit • Passive PoE Adapter • Power Cord
Lightning Protection	Ethernet Ports: ±6 kV
Environment	• Operating Temperature: -40 °C–70 °C (-40 °F–158 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing
Weight	1.1 kg (2.43 lb)
