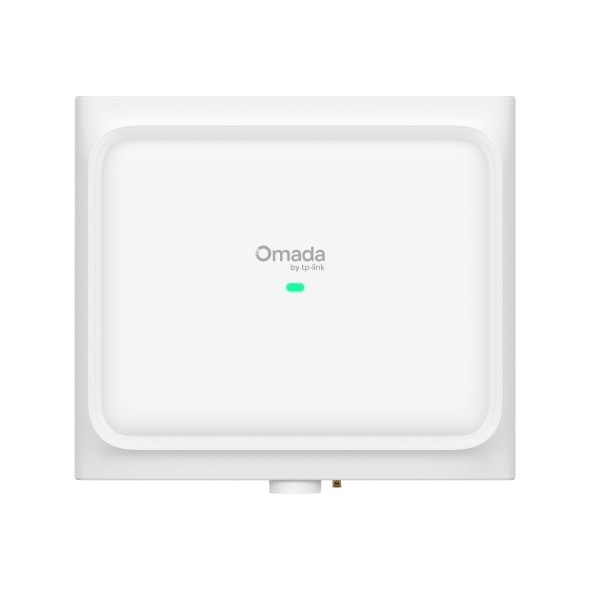

EAP650 D120-Outdoor | TP-Link Omada Wi-Fi 6 AX3000 Indoor/Outdoor Dual-Band Wi-Fi 6 Access Point

Superior WiFi 6 Speeds: 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.
Directional Ultra-Range Coverage: Equipped with built-in high-gain 120° directional antennas to deliver broad and extended coverage.
Ideal for Warehouses and Outdoor Scenes: Features an IP68 waterproof enclosure with -30°C to +70°C operating range.
802.11k/v/r Seamless Roaming: Ensures uninterrupted connectivity for AGVs and handheld scanners.
Flexible Deployment: Supports 802.3at PoE and Omada Mesh technology.
Centralized Cloud Management: Control everything from a single interface anywhere via the Omada app or Web UI.

$249.99

Product Details

HARDWARE FEATURES
Interface	1× Gigabit Ethernet Port (supports 802.3at PoE or 48V Passive PoE)
Button	Reset
Power Supply	• 802.3at PoE • 48V Passive PoE
Max. Power Consumption	• EU: 12.5W (802.3at PoE or Passive PoE) • US: 14.7W (802.3at PoE or Passive PoE)
Dimensions ( W x D x H )	8.2 × 2.3 × 9.1 in (207.5 × 58 × 230 mm)
Antenna	Built-in Directional Antennas: • 2.4 GHz: 2× 8 dBi • 5 GHz: 2× 10 dBi Beamwidth: 120° Horizontal; 30° Vertical
Bluetooth	Yes
Weatherproof Enclosure	IP68
Mounting	Optional bracket accessory APM-100: Supports vertical ±45° , horizontal ±45° adjustment Note: Optional bracket accessories need to be purchased separately

Management Features
Omada App	Yes
Restore & Backup	Yes
NTP	Yes
Centralized Management	• Omada Hardware Controller • Omada Software Controller • Omada Cloud-based Controller • Omada APP
Cloud Access	Yes. Require the use of an Omada controller.
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c, v3
System Logging Local/Remote Syslog	Yes
SSH	Yes
Web-based Management	Yes
Multi-site Management	Yes
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller

WIRELESS FEATURES
Coverage	• 2.4 GHz: 200+ m^* • 5 GHz: 500+ m^*
Concurrent Clients	250+^**
Wireless Standards	IEEE 802.11 a/b/g/n/ac/ax
Frequency	2.4 GHz, 5 GHz
Signal Rate	574 Mbps (2.4 GHz) + 2402 Mbps (5 GHz)^†
Wireless Functions	• 1024-QAM • DL/UL OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 on each band) • Enable/Disable Wireless Radio • Enable/Disable SSID Broadcast • Guest Network • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS (WMM) • 2 × 2 (2.4 GHz & 5 GHz) DL/UL MU-MIMO • Omada Mesh^§ • Seamless Roaming(802.11k/v/r)^§ • Band Steering • Load Balance • Airtime Fairness • Beamforming • RADIUS Accounting • MAC Authentication • Reboot Schedule • Wireless Schedule • Wireless Statistics • Static IP/Dynamic IP
Wireless Security	• Captive Portal Authentication^§ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power	• CE: < 20 dBm (2.4GHz, EIRP); < 23dBm (5 GHz, band1 & band 2, EIRP);< 30 dBm (5 GHz,band 3, EIRP); • FCC: < 30 dBm (2.4 GHz); < 30 dBm (5 GHz)

OTHERS
Certification	CE, FCC
Package Content	• Access Point EAP650 D120-Outdoor • Mounting Kits • Installation Guide • Waterproof Kit
System Requirements	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment	• Operating Temperature: -30–70 ℃ (-22–158 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
