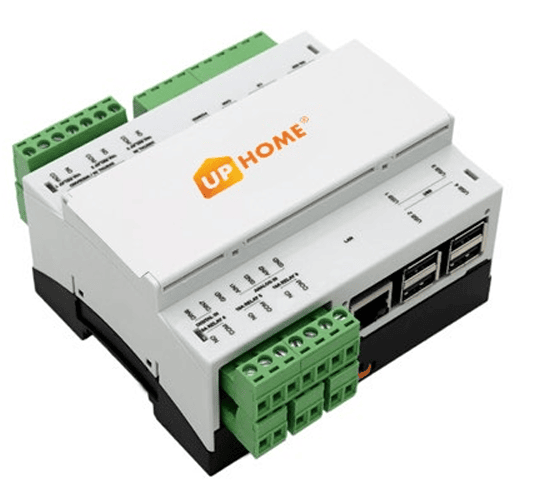

UpHome DIN Controller
Model: UP-CDN-CTP-150 · V1.5.0
The UpHome DIN Controller is a rail-mounted automation and access control module designed for panels, electrical cabinets, and structured installs. It combines high-current switching, flexible I/O, and dual Wiegand support in a single unit — making it equally at home driving lighting and HVAC loads or managing door hardware and readers.
Six 10 A relay outputs handle real-world loads up to 277 VAC, backed by a 10-million-cycle mechanical service life. For integration, the controller offers CAN and LS bus communication, RS-232, wired Ethernet, and 2.4 GHz Wi-Fi, alongside analog inputs, digital I/O, and two configurable Wiegand ports for access control.
Key features
- 6× relay outputs, 10 A per channel (up to 277 VAC)
- 2× Wiegand ports (configurable as digital inputs) for access control
- 7 digital inputs · 2 analog inputs (0–10 V)
- CAN bus, LS (Low Speed) bus, and RS-232 serial communication
- Ethernet (RJ45) + Wi-Fi 2.4 GHz
- Wide-range power input: 15–30 V DC (24 V typical)
- DIN-rail mounting · IP20 · operating range 0–40°C
- Mechanical service life: 10,000,000 switching cycles
- CE certified
