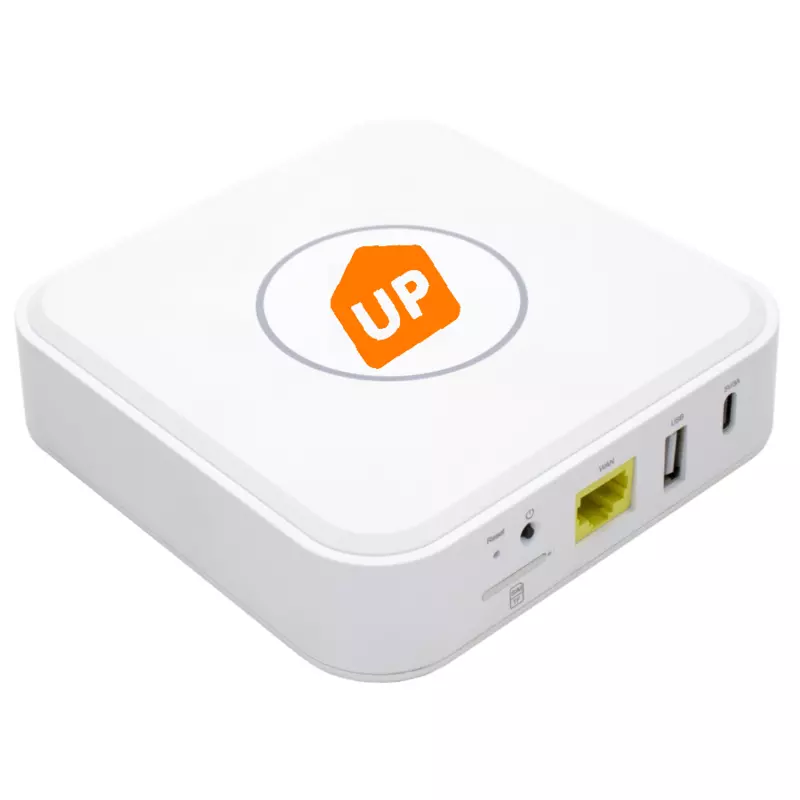

UpHome Wireless Core — Base Version
Model: CH-WMP-COR-100
The UpHome Wireless Core is a multi-protocol smart home and building automation hub built to unify devices that normally live on separate networks. With native support for Zigbee 3.0, Z-Wave, Wi-Fi, Bluetooth 5.2, and RF — plus optional LoRaWAN — a single Core can anchor an entire residential or light-commercial installation without a stack of bridges.
Under the hood, a quad-core Cortex-A35 processor with 2 GB RAM and 8 GB eMMC handles local automation reliably, while onboard ECC608 hardware encryption keeps device communication secure. A bundled 128 GB SD card provides ample local storage, and RGB status LEDs give installers at-a-glance feedback on power, wireless activity, and connectivity.
Key features
- Multi-protocol: Zigbee 3.0, Z-Wave, Wi-Fi 2.4G/5G, Bluetooth 5.2, RF (LoRaWAN optional)
- Quad-core Cortex-A35 CPU · 2 GB RAM · 8 GB eMMC
- ECC608 hardware encryption for secure device communication
- WAN/LAN networking + USB 2.0; 128 GB SD card included
- Real-time clock with battery backup
- RGB indicators: power/battery, wireless, LTE
- Zigbee & Z-Wave range up to 100 m; Bluetooth up to 150 m
- Operating temperature −10°C to +60°C · IP22 rated
- Compact desktop form factor · CE certified
